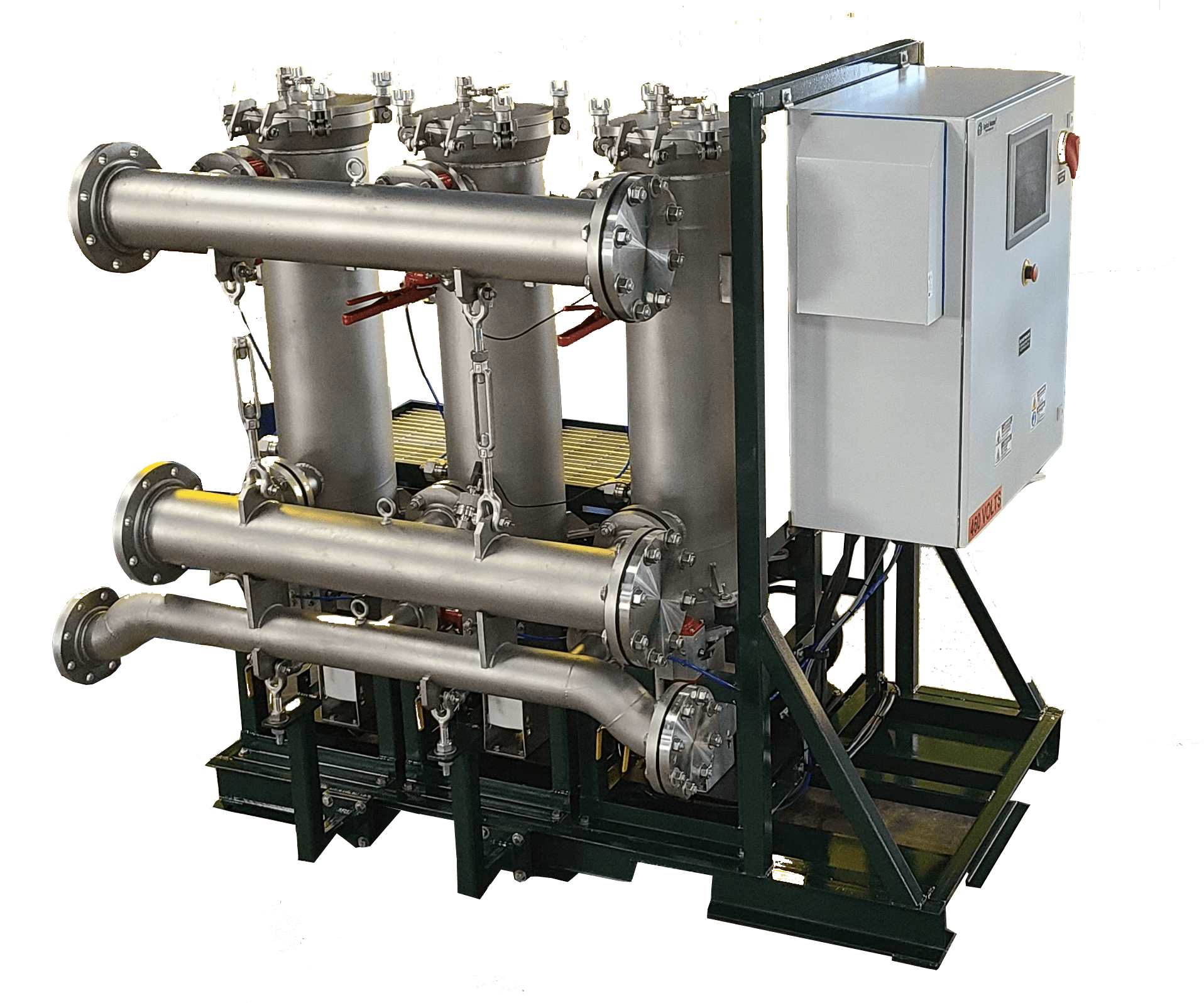

T1000-TPX



The T1000-TPX is a liquid/solid separator and automatic self-cleaning filter system designed to remove Ultra High and Variable Total Suspended Solids (TSS) from a fluid stream. Each filter unit contains a motor-driven, spiral-shaped brush that continuously cleans collected debris from inside the filter element. Solids collect at the bottom of the filter housing to be expelled through an automatic purge valve or a continuous concentrate stream. The system does not require high pressures to operate and performs at very low differential pressure. No backwash, cross flow or booster pumps required.

Contact Us | Download Spec Sheet



Technical Specifications for Model SWT T1000-TPX

Specification Range
Inlet: 6” Class 150 ANSI Flange
Filtered Outlet: 6” Class 150 ANSI Flange
Purge Outlet: 4” Class 150 ANSI Flange
Max Flow: 3270m3 /day (600 gpm)
Filtration Rating: 15 – 100 micron
Max TSS: 15,000+ ppm
Max Operating Press: 10.3 bar (150 psi) @70°F
Min Operating Press: 0.69 bar (10 psi)
Max Temperature 90°C (190°F)
Head Loss: <0.1 bar (2 psi)
Power Requirement: 3-Ph, 230VAC, 100A (460VAC Optional)
Purge Valve: 2" Pneumatic Pinch Valve
Air Requirement: 30 psi above media pressure
Max Air Pressure: 120 PSI

MATERIALS OF CONSTRUCTION

Part Material
Wetted Components 304 SS, Nylon 6.12
Elastomers Buna-N, EPDM or Viton
Filter Elements 316 SS

Performance Specification

The spiral shaped brush is designed to rotate continuously, so there is always less than 1 psi head loss across the filter screen. Flow through the filter unit is limited by both solids loading and hydraulic loading on the screen. Flow rates listed below assume a viscosity of 1.0 cP and TSS up to 1000 mg/l. The system can handle higher TSS values with corrections to the flow rate. The control system can monitor the solids build up in the housing and open the purge valve when necessary. The unit will include a 5 psi cracking pressure check valve on the filtered outlet and a pinch valve on the purge outlet. Operating pressure in the 5 to 20 psi range is optimal, though the unit is capable of operating at 150 psi.



Applications of the Model SWT T1000-TPX

  • TSS and BOD Reduction
  • Recycling of Secondary Wastewater
  • Protection of Monitoring Equipment
  • Nozzle Protection
  • Bearing and Seal Protection
  • Wastewater Filtration
  • River Water Cooling Filtration

Flow Rates for TSS up to 1000 ppm

Note: The higher the solids, the higher the perceived apparent viscosity. At TSS above 1000 ppm, lower flow rates are required to avoid fouling of the filter screen

Filter Screen Nominal Filtration Rating (microns) Max Flow Rate (gpm, [m3 /hr])
SWT810-FE-BB 15 300 [45.4]
SWT810-FE-GG 20 399 [90.6]
SWT810-FE-YY 25 495 [112.4]
SWT810-FE-RR 50 600 [136.3]
